Precision Insert Heavy Duty Pillow Block Bearings Ucp 206 Cast Iron Housing , High Capacity

Precision Insert Heavy Duty Pillow Block Bearings Ucp 206 Cast Iron Housing , High Capacity

UCP206

pillow block bearing

H*d*L*J*H0*B:42.9*30*165*121*83*38.1*1.3
material: GCR15/52100/100Cr6/100C6
UCP UCT UCFL UCF series

The descriptions:

1.Bore diameter: from 12mm to 140mm:

2.Outer diameter: from 47mm to 300mm:
3.Material:bearing steel/chrome steel--China,(AISI)52100--American,(Din)100Cr6--Germany

4.Feilds Used in: Motorcycle, Motor, Pump, Fan, Air conditioner, Microwave Oven ,Sewing Machine, Massage Chairs, Agriculture Machinery, Fitness equipment, Washing Machine, Office equipment.

1.Mainly Series

UCF200 Series,UCT200 Series,UCP200 Series,UCFL200 Series,UCFC200 Series,

UCFA200 Series,SBPF200 Series and so on.

2.Applications

Bearing manufacturer pillow block ball bearing units ucp 205 206 are widely used

in mines,metallurgy,reaper, textile machinery,body building equipments,agricultural

machinery,construction machinery,foodstuff machinery and conveying devices and

so on.

3.Product Features

Rational Self-Aligment

The outside diameter of the self-contained bearing is spherical to match corresponding

spherical inside diameter of the housing providing self-aligning between these two members,

which compensates for misalignments of the units resulted from errors in mounting and

distorting of the foundation

Large Load Carrying Capacity

Being the same as 6200 and 6300 series single row deep groove ball bearings in internal

construction of the self-contained bearings,Insert ball bearing units can sustain radial loads

and sustain thrust loads as well.And they are low noise during operating.

Longer Service Life

Insert ball bearing units are often used in severe operating conditions where they are

exposed to dirts,moisture and high temperatuer,and in such applications,the grease inside

the self-contained bearing deteriorates in a short time.It is required that relubricate the units

at suitableintervals so as to replace deteriorating grease with fresh grease.China ball bearing

inserts with cast iron housing are all relubricable types equirpped with grease fitting to secure

full performance and longer service life of the units under any operating conditions.

Solid Housing

The cast iron housing if of solid one-piece construction to provide maximum rigidity against

deformation at mounting and wear-resistance to any operating conditions.

. We are bearing manufacturer pillow block ball bearing units ucp 205 206

More types of Pillow block bearings are available

Q&A

1. Q: Manufacturer or Trading Company:

A: We (Shenzhen Youmeite Bearing Co., Ltd.) have our own factory to produce goods for you.

2. Q: Material/ quality?

A: Chrome steel, carbon steel, ceramic bearings, ISO9001:2008 certificate to ensure quality.

3. Q: about samples:

A: Samples is free offered except large bearings, shipping cost should be paid by buyer, the shipping cost will be refund after order confirmed.

4. Q: Brand and services?

A: Neutral brand, OEM service, OEM any brand as customer's requirements. For the branded bearings, please note we are Authorized Distributors for South China, if you have any doubts, please contact us freely.

5. Q: Capacity for supply goods?

A: about 2-15 days can delivery your goods after received your deposit or payment.

6. Q: Package and shipping?

A: 1: 1pc/plastic bag + color box + carton + plywood pallets.

2: barreled package+outer carton+pallets

3: single box+outer carton+pallets

4: tube package+middle box+outer carton+pallets

5: According to your requirement.

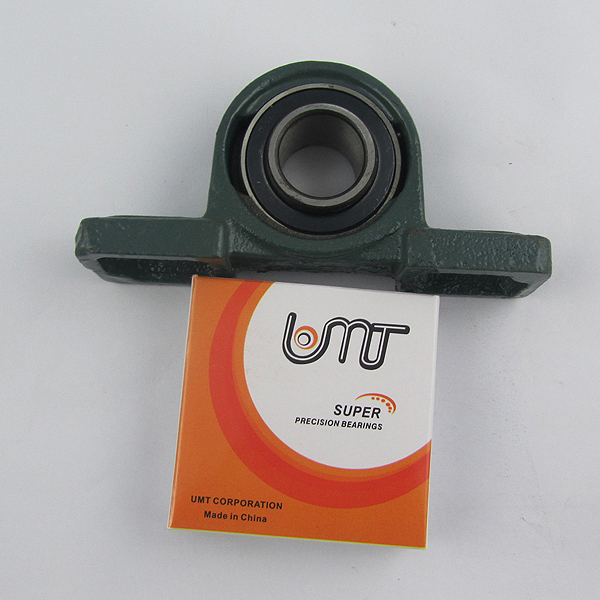

Photos of pillow block bearing UCP 206

high speed bearings

automotive bearings

Precision Insert Heavy Duty Pillow Block Bearings Ucp 206 Cast Iron Housing , High Capacity Images
